1.Good versatility and interchangeability,stable and reliable connection,high repeatability.
2.Low insertion loss,high return loss.
3.Simple wiring,small space.
Applications

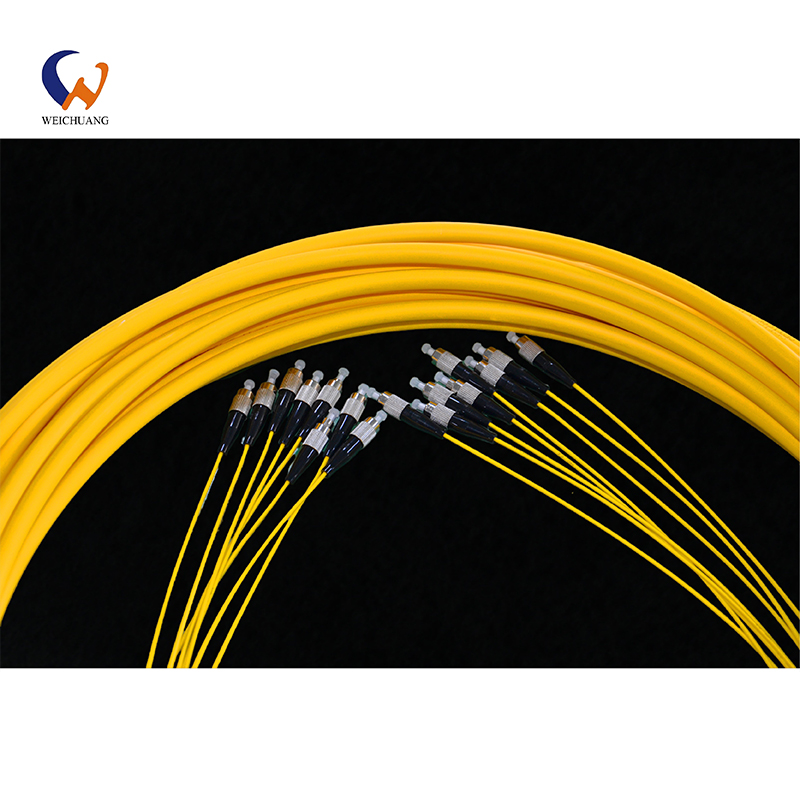

Break out pigtail is widely used in Fiber communication systems、local area network(LAN)、ODF、CATV、fiber optical access network、fiber testing equipment and so on.
Index
Type | IL | RL | |||
Spec | SM | MM | PC | UPC | APC |
SC/FC | ≤0.3dB | ≤0.4dB | ≥45dB | ≥50dB | ≥60dB |
ST | ≤0.3dB | ≤0.4dB | ≥45dB | ≥50dB | / |
LC | ≤0.3dB | ≤0.4dB | ≥45dB | ≥50dB | ≥60dB |
1.Provide fiber connection from 12cores to144cores.
2.Using 4、8、12、24cores of MPO connectors, reduce the failure and reduce wiring space.
3.Upgrade from 10G to 40G、100G network transmission, and support the transmission of 100G delay index.
4.According to user’s configuration requirement, Can choose multimode fiber(OM 3、OM 4) and single mode fiber (G652D、G657A 2) and other fiber type.
5.Using circle、small diameter fiber cable to realize smaller bending radius, and make storage and laying convenient and fast.
6.The protect tube of the dust-proof、pressure-resistant、tension-resistant can effective protect fiber cable and connectors from damaging during transportation and installation.
1.Provide fiber connection from 12cores to144cores.
2.Using 4、8、12、24cores of MPO connectors, reduce the failure and reduce wiring space.
3.Upgrade from 10G to 40G、100G network transmission, and support the transmission of 100G delay index.
4.According to user's configuration requirement, Can choose multimode fiber(OM 3、OM 4) and single mode fiber (G652D、G657A 2) and other fiber type.
5.Using circle、small diameter fiber cable to realize smaller bending radius, and make storage and laying convenient and fast.
6.The protect tube of the dust-proof、pressure-resistant、tension-resistant can effective protect fiber cable and connectors from damaging during transportation and installation.
