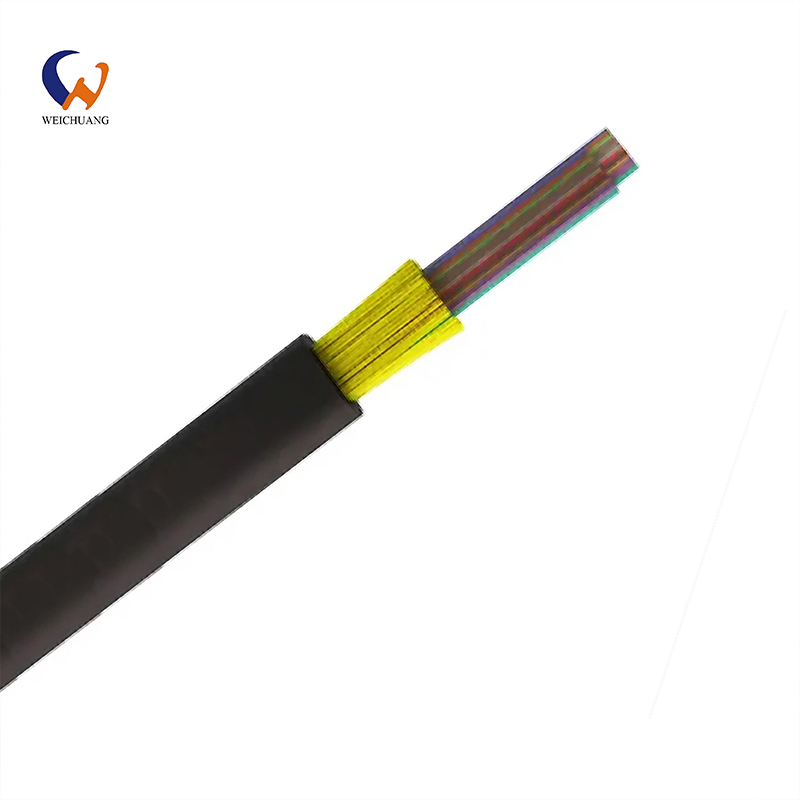

1. Fiber ribbon,aramid yarn,flame-retardant jacket
2. Suited to SM fiber
Geometrical Characteristics
Cable Type | 4, 6 | 8, 12 |
Cable Dimension (mm) | (2.4±0.2)×(3.3±0.2) | (2.4±0.2)×(5.0±0.2) |
Cable Weight (kg/km) | 6.8 | 9.4 |
Coloring Fiber Diameter (μm ) | 260±5 | |
Mechanical Characteristics
| SMF | |
| 1310/1550(nm) | |
| Attenuation(dB/km) | ≤0.40/0.30 |
| Minimum Bandwidth(Mhz.km) | ......... |
Fiber
| Fiber Type(core/cladding dimension) | 8.3/125 |
Transmission Characteristics
SMF | |
| 1310/1550(nm) |
Attenuation(dB/km) | ≤0.40/0.30 |
Minimum Bandwidth(Mhz.km) | ......... |
Environmental Characteristics
| Operating Storage Temperature | -20℃~+60℃ |
Simplex cable,2-12 simplex cable are stranded around the metallic central strength member, arrange circuit according to clockwise order in turn, then used wrap winding, the APL is longitudinal covering, the cable is completed with outer sheath.
Element: tight buffer fiber,used 6,12 core distribution cable for the Subunit into a compact, then used wrap winding the cable is completed with outer jacket. The cable inclue 4,6,8,12 sub-cables, the every Sub-cables.the every sub-cable include 6,12 tight buffer fiber.
1. 900μm Or 600 μm tight buffer fiber.aramid yarn,soft flame-retardant jacket.
2. Excellent Stripping performance of tight buffer fiber.
3. Suited to SM fiber and MM fiber (50μm and 62.5μm).
1.900μm tight buffer fiber aramid Yarn,flame-retardant jacket.
2.Excellent Stripping performance of tight buffer fiber.
3.Suited to SM fiber and MM fiber (50 μm and 62.5μm).
