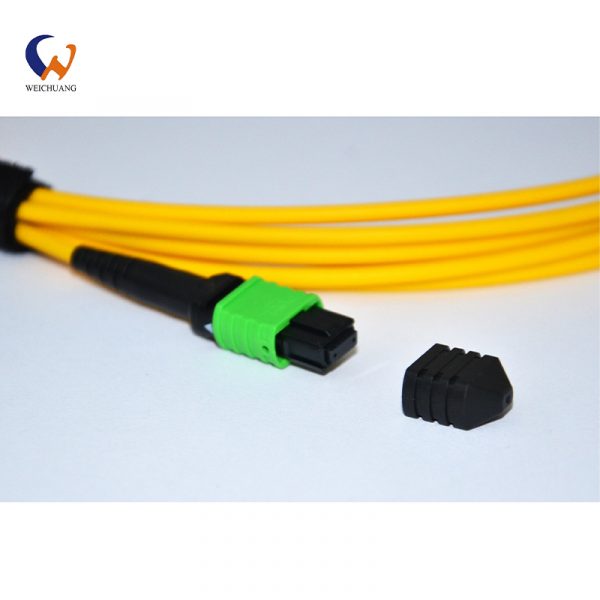

1.Provide fiber connection from 12cores to144cores.
2.Using 4、8、12、24cores of MPO connectors, reduce the failure and reduce wiring space.
3.Upgrade from 10G to 40G、100G network transmission, and support the transmission of 100G delay index.
4.According to user’s configuration requirement, Can choose multimode fiber(OM 3、OM 4) and single mode fiber (G652D、G657A 2) and other fiber type.
5.Using circle、small diameter fiber cable to realize smaller bending radius, and make storage and laying convenient and fast.
6.The protect tube of the dust-proof、pressure-resistant、tension-resistant can effective protect fiber cable and connectors from damaging during transportation and installation.
Performance
IL | ≤0.7dB |
TP | -40°C~+80°C |
Wave Length | 850nm-1300nm |
Repeatability | ≤0.10dB |
Changeability | ≤0.20dB |
Durability | The typical change value≤0.20dB |
Performance of Outer Jacket | (round cable、 flat cable) |
Vertical Tension | ≥120N |
1.Small diameter stainless tube protection.
2.Resistance to improper torsion damage.
3.High tensile、high pressure、anti-rat bites.
4.Temperature range-40℃-80℃.
5.Construction is more convenient,ensure safety.
1.Low insertion loss,high re tum loss.
2.Good versatility and changeability,stable and reliable connectionhigh repeatability.
3.Outstanding tensile performance,convenient construction.
4.Fully compatible with other fiber connectors.
1. Special anti-bending optical fiber provides greater bandwidth and enhances network transmission characteristics.
2. Two parallel reinforcement parts make the optical cable have good compression resistance and protect the optical fiber.
3. Outdoor leather wire has simple structure, light weight and strong practicality.
4. Outdoor leather wire unique groove design, easy to separate, easy to splice, simplify installation and maintenance.
1.Good versatility and interchangeability,stable and reliable connection,high repeatability.
2.Low insertion loss,high return loss.
3.Simple wiring,small space.
