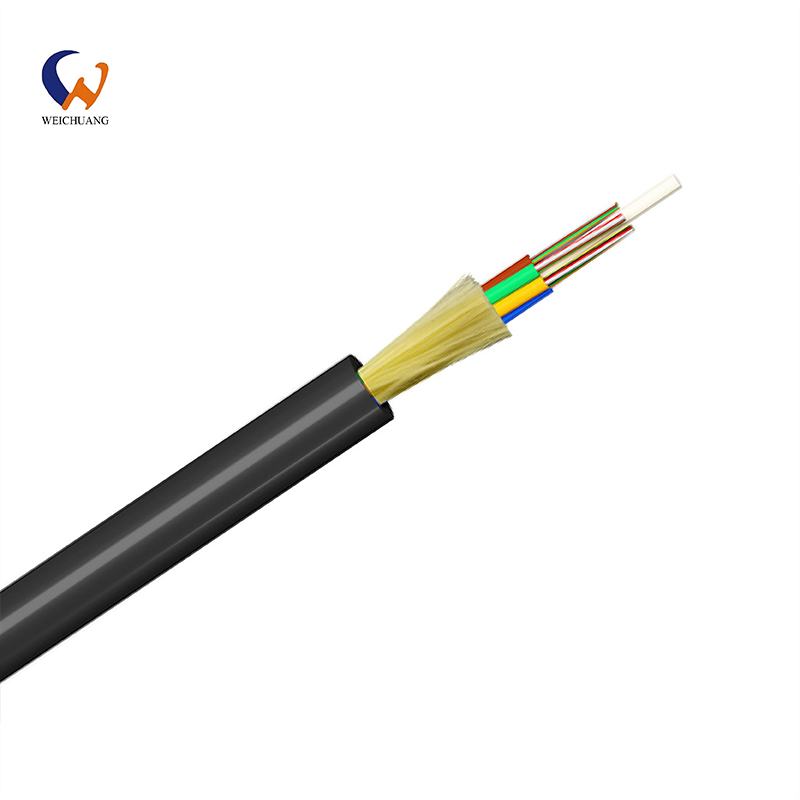

Stranded loose tube non-armored cable GYFTY

Stranded loose tube non-armored cable GYFTY

1.Great mechanical and temperature performance.

2.High strength loose tube that is hydrolysis resistant.

3.Special tube filling compound to make surea critical protection of fiber.

4.Good crush ability and soft.

5.Adopt the measures below to assure the water-proof function.

6.Single non-metallic central strength member.

7.Special tube filling compound ensure a critical protection of fiber.

8.Fully fiber filled.

Product Details

Transmission Characteristics

G.652

G.655

50/125μm

62.5/125μm





Attenuation  (+20℃)

@850nm





≤3.0dB/km

≤3.0dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.36dB/km





@1550nm

≤0.22dB/km

≤0.23dB/km





Bandwidth  (Class A)

@850





≥500MHZ·km

≥200MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

Numerical Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off  Wavelength

≤1260nm

≤1480nm







Geometrical Characteristics

Fiber Count2~3638-7274-9698-120122-144
Cable Dimension (mm)Ф10.2Ф11Ф12Ф14Ф16
Cable Weight (Kg/km)90110135170200



Mechanical Characteristics

Tensile Strength(N)

Long Term

600N

Short Term

1500N

Crush Resistance

(N/100cm)

Long Term

300/100mm

Short Term

1000/100mm

Bending Radius(cm)

Dynamic

≥20D(D:Cable Diameter)

Static

≥10D(D:Cable Diameter)

产品详情页底部的那张通用图片

FAQ

The MOQ of fiber optic cable is 1km.
Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Yes,we have own factory,OEM is available.Please contact us and give me your design before our production.
Firstly,we use top quality raw material(best fiber and friendly sheath material etc),Then surveyor will do the test,such as raw material quality test,fiber optic attenuation test and high or low temperature test etc.
We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Over 20000 square meters.More than 26 productions lines in total,About 300 well-trained staff and engineers.
