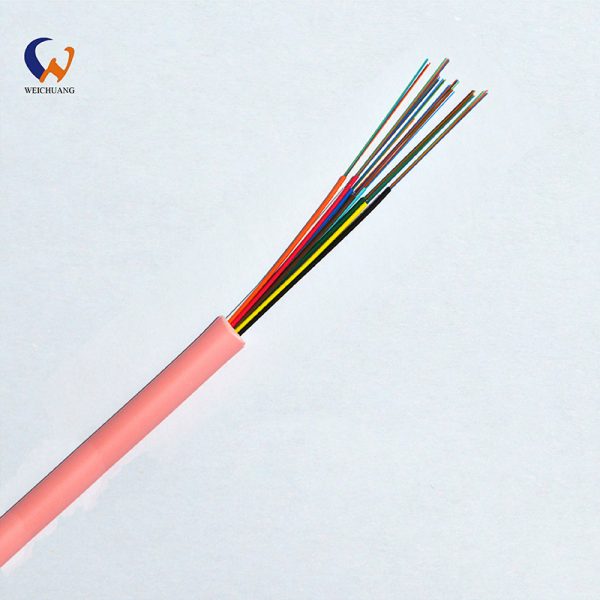

Access optical fiber cable, also known as access cable, is a high-performance solution designed to meet the demands of modern network environments. It is compatible with both single-mode and multi-mode fiber, making it the ideal choice for fiber optic temperature transmission projects. It is commonly used in FTTH networks and vertical telecommunication ducts, our access cable provides reliable, versatile connectivity for your critical applications.
Geometrical Characteristics
Cable Type | 12 | 24 | 48 | 72 |
Cable Dimension(mm) | 7.1 | 11.2 | 11.5 | 12.7 |
Cable Weight(kg/km) | 31 | 105 | 105 | 149 |
BF Diameter(μm) | 250±15 |
Mechanical Characteristics
Tensile Strength(N) | Long Term | 600 | 600 |
Short Term | 1300 | 1500 | |
Long Term | 300 | ||
Short Term | 1000 | ||
Crush Resistance(N/100cm) | Dynamic | 20xD(D:Cable Diameter) | |
Bending Radius(cm) | Static | 10xD(D:Cable Diameter)) |
Fiber
Fiber Type(core/cladding dimension) | 8.3/125,50/125,62.5/125 |
Transmission Characteristics
SMF | 50/125 | 62.5/125 | |
| 1310/1550(nm) | 850/1300(nm) | 850/1300(nm) |
Attenuation(dB/km) | ≤0.40/0.30 | ≤3.5/1.5 | ≤3.5/1.5 |
Minimum Bandwidth(Mhz·km) |
| ≥400/400 | ≥160/500 |
Environmental Characteristics
Operating Storage Temperature | -40℃~+70℃ |
Access optical fiber cable is composed of six different materials: simplex cable, central strength member, wrap, cable, filling water-block fiber, and outer jacket. These components collectively enhance the operational performance of the fiber optic cable for subscriber access.
The simplex cable provides reliable single-direction signal transmission, suitable for short distances and simple network connections.
The central strength member, which is the core strengthening component of the fiber access cable, provides mechanical strength and stability. It prevents deformation under pressure during installation and operation, thereby ensuring the integrity and performance of the access optical fiber.
The wrap mainly protects the access fiber cable bundle, preventing damage during the manufacturing and laying of the cable, while also offering moisture and water resistance.
The cable itself serves as the primary structure housing all the internal components, ensuring that they remain aligned and protected.
The filling water-block fiber serves a waterproofing function, it rapidly absorbs and swells when exposed to moisture or water, blocking the spread of water within the cable and protecting the access cable from moisture damage, thus extending the access cable’s lifespan.
The outer jacket protects the access optical fiber cable in networking from mechanical damage, UV radiation, chemical corrosion, and environmental impact, ensuring stable operation in various environments.
Benefits of Fiber Access Cable from Weichuang Optics
Supports Various Fiber Modes : The fiber access cable supports various modes, including both single-mode fiber and multi-mode fiber, to accommodate different fiber types.
Excellent Mechanical Properties: In terms of mechanical properties, the fiber access cable has excellent tensile strength and crush resistance in both the short and long term. This allows the fibre access cable to remain durable and reliable characteristics under different conditions.
Various Applications in Diverse Environments: The access network cable can be stably operated and stored under a range of temperatures, making it an ideal choice to apply in various scenarios, such as telecommunication networks, data centers, and home and commercial networks.
Custom service: If you need to use specific colours of access optical cable in certain scenarios, Weichuang Optics able to offer more than 12 customized colours to meet your requirements based on your specific scenarios.
Quality Commitment: We promise that our fiber optic access cables are produced using advanced technology. Additionally, we operate strictly in accordance with ISO 9001:2015 international standards. From design and production to inspection and sales, we have dedicated teams managing every step of the process with comprehensive scientific oversight.
1.Special low-bend sensitivity fiber provides high bandwidth and excellent communication transmission property.
2.Two parallel strength members ensure good performance of crush resistance to protect the fiber.
3.Simple structure,light weight and high practicability.
4.Novel flute design, easily strip and splice, simplify the installation and maintenance.
5.Single steel wire as the additional strength member ensures good performance of tensile strength.
1.Sheath mechanical and physics performance content correlative standard request.
2.Diameter and bending radius small, lt can installation freely in narrow room.have both optical signal transmission and electricity transmission.
1.600μm tight buffer fiber,steel tube protect reinforcing steel-wire,braiding(aramid yarn) , flame retardant jacket High indentation strength.High tensile strength gopher or protected,small diameter, flexibility and easy bend.
2.Excellent stripping performance of tight buffer fiber.
3.Suited to SM fiber and MM fiber(50um and 62.5μm).
4.It is ideal for fiber optic temperature transmission project.
1.600 um tight buffer fiber, steel tube protect, reinforcing steel-wire braiding flame-retardant jacket . High indentation strength.High tensile strength gopher protected, small diameter, flexibility and easy bend.
2.Excellent stripping performance of tight buffer fiber.
3.Suited to SM fiber and MM fiber (50μmand 62.5umm).
4.It is ideal choice of fiber optic temperature transmission project.
