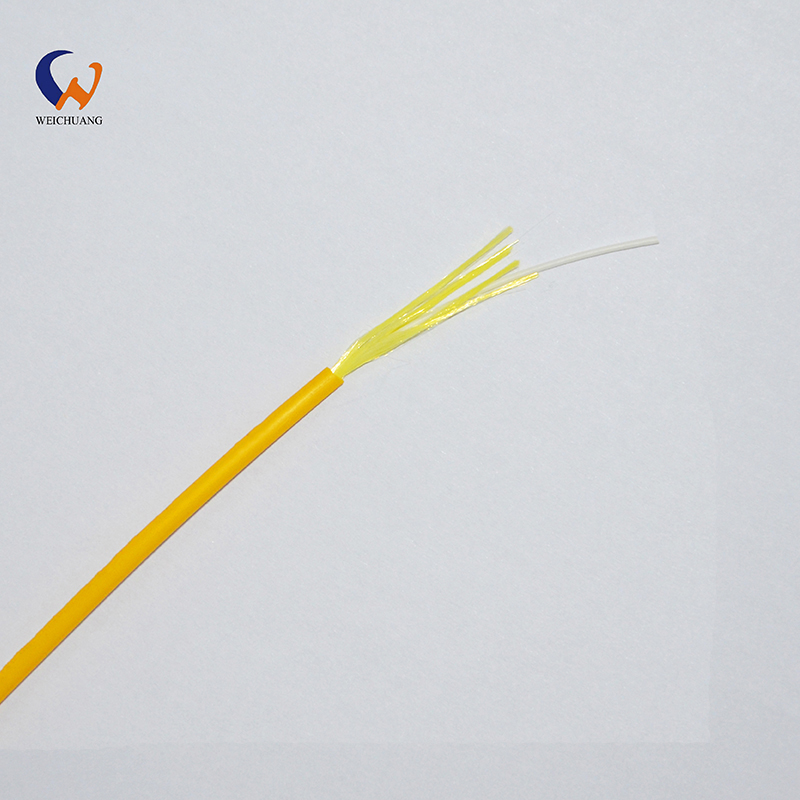

1.900μm Hytrel, PVDF, aramid yarn, soft flame-retardant jacket.
Geometrical Characteristics
Cable Type | Φ3.0 | Φ2.0 |
Cable Dimension (mm) | 2.85±0.1 | 1.95±0.1 |
Cable Weight (kg/km) | 6.5 | 3.2 |
Loose Tube Diameter (μm ) | 900±50 | |
Mechanical Characteristics
Tensile Strength(N) | Long Term | 60 |
Short Term | 100 | |
Crush Resistance (N/100cm) | Long Term | 100 |
Short Term | 500 | |
Bending Radius(cm) | Dynamic | 20xD(D:Cable Diameter) |
Static | 10xD(D:Cable Diameter) |
Environmental Characteristics
Operating Storage Temperature | －20℃～＋60℃ |
1. 2 subcable flame-retardant jacket.
2. Excellent Stripping performance of tight buffer fiber.
3. Suited to SM fiber and MM fiber (50 μm and 62.5μm).
Element: tight buffer fiber,used 6,12 core distribution cable for the Subunit into a compact, then used wrap winding the cable is completed with outer jacket. The cable inclue 4,6,8,12 sub-cables, the every Sub-cables.the every sub-cable include 6,12 tight buffer fiber.
1. Fiber ribbon,aramid yarn,flame-retardant jacket
2. Suited to SM fiber
Element: Simplex cable are stranded around the non-metallic central strength member
