1.Special low-bend sensitivity fiber provides high bandwidth and excellent communication transmission property.
2.Two parallel strength members ensure good performance of crush resistance to protect the fiber.
3.Simple structure,light weight and high practicability.
4.Novel flute design, easily strip and splice, simplify the installation and maintenance.
5.Single steel wire as the additional strength member ensures good performance of tensile strength.

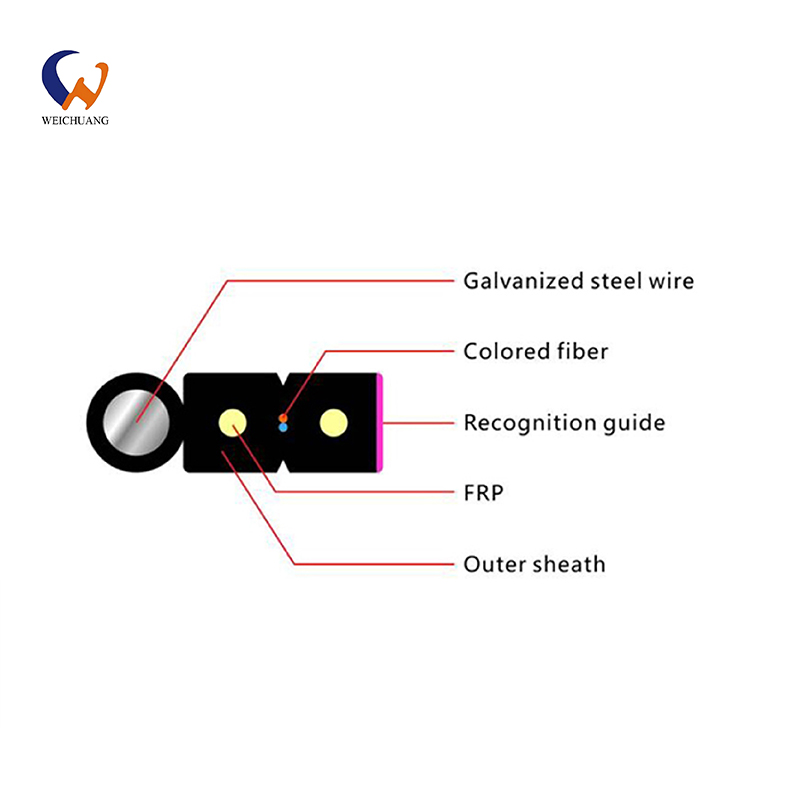

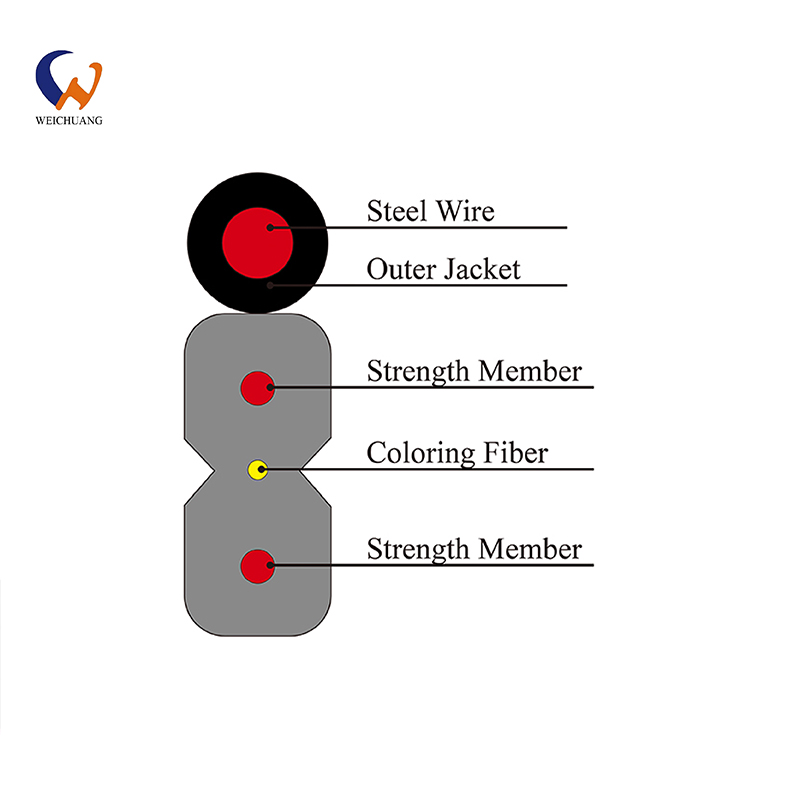

Geometrical Characteristics
Fiber Core | 1 | 2 | 1 | 4 |
Cable Dimension(mm) | 2.0x5.0 | 2.0x5.0 | 2.0x3.6 | 2.0x5.6 |
Cable Weight(kg/km) | 20 | 20 | 21 | 22 |
Mechanical Characteristics
Tensile Strength(N)
| Long Term | 60 |
Short Term | 120 | |
Bending Radius(cm) | Dynamic | 30 |
Static | 15 |
Fiber
Fiber Type(core/cladding dimension) | G.657A |
Transmission Characteristics
SMF | |
1310/1550(nm) | |
Attenuation(dB/km) | ≤0.40/0.30 |
Minimum Bandwidth(Mhz·km) |
Environmental Characteristics
Operating Storage Temperature | －20℃～＋60℃ |
1.Special low-bend sensitivity fiber provides high bandwidth and excellent communication transmission property
2.Suitable for the connection of indoor between outdoor.
1.Special low-bend sensitivity fiber provides high bandwidth and excellent communication transmission property.
2.Two parallel strength members ensure good performance of crush resistance to protect the fiber.
3.Simple structure,light weight and high practicability.
4.Novel flute design, easily strip and splice, simplify the installation and maintenance.
1.600μm tight buffer fiber,steel tube protect reinforcing steel-wire,braiding(aramid yarn) , flame retardant jacket High indentation strength.High tensile strength gopher or protected,small diameter, flexibility and easy bend.
2.Excellent stripping performance of tight buffer fiber.
3.Suited to SM fiber and MM fiber(50um and 62.5μm).
4.It is ideal for fiber optic temperature transmission project.
1.600 um tight buffer fiber, steel tube protect, reinforcing steel-wire braiding flame-retardant jacket . High indentation strength.High tensile strength gopher protected, small diameter, flexibility and easy bend.
2.Excellent stripping performance of tight buffer fiber.
3.Suited to SM fiber and MM fiber (50μmand 62.5umm).
4.It is ideal choice of fiber optic temperature transmission project.
