Break-out Indoor Optic Fiber Cable Ⅲ

Break-out Indoor Optic Fiber Cable Ⅲ

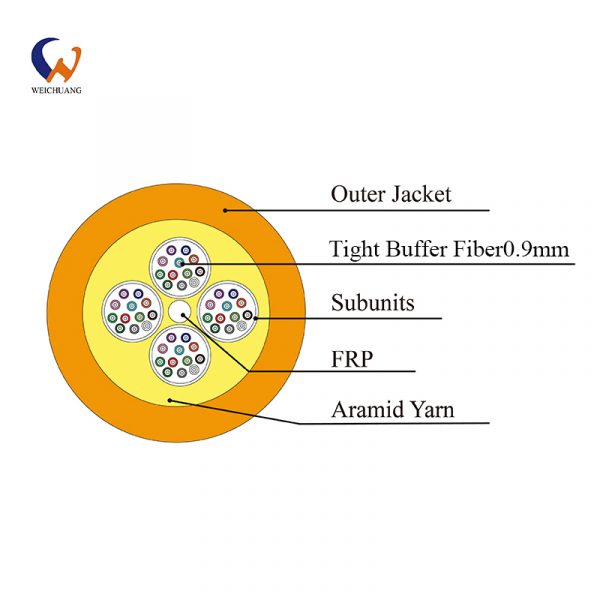

Element: tight buffer fiber,used 6,12 core distribution cable for the Subunit into a compact, then used wrap winding the cable is completed with outer jacket. The cable inclue 4,6,8,12 sub-cables, the every Sub-cables.the every sub-cable include 6,12 tight buffer fiber.

Product Details

Geometrical Characteristics

Cable Type

24

48

64

72

96

144

Cable Dimension (mm)

15.5

17

21.6

21

24

26.2

Cable Weight (kg/km)

225

226

386

349

481

526

Sub-unit Fiber Number

6

12

8

12

12

12

TBF Diameter (μm)

900±50



Mechanical Characteristics

Tensile Strength(N)

Long Term

200

Short Term

660

Crush Resistance (N/100cm)

Long Term

300

Short Term

1000

Bending Radius(cm)

Dynamic

20xD(D:Cable Diameter)

Static

10xD(D:Cable Diameter)



Transmission Characteristics



SMF

50/125

62.5/125

1310/1550(cm)

850/1300(nm)

850/1300(nm)

Attenuation(dB/km)

≤0.40/0.30

≤3.5/1.5

≤3.5/1.5

Minimum Bandwidth(Mhz·km)

.........

≥400/400

≥160/500



Fiber

Fiber Type(core/cladding dimension)

8.3/125,50/125,62.5/125



Environmental Characteristics

Operating Storage Temperature

-20℃~+60℃

产品详情页底部的那张通用图片

FAQ

The MOQ of fiber optic cable is 1km.
Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Yes,we have own factory,OEM is available.Please contact us and give me your design before our production.
Firstly,we use top quality raw material(best fiber and friendly sheath material etc),Then surveyor will do the test,such as raw material quality test,fiber optic attenuation test and high or low temperature test etc.
We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Over 20000 square meters.More than 26 productions lines in total,About 300 well-trained staff and engineers.
