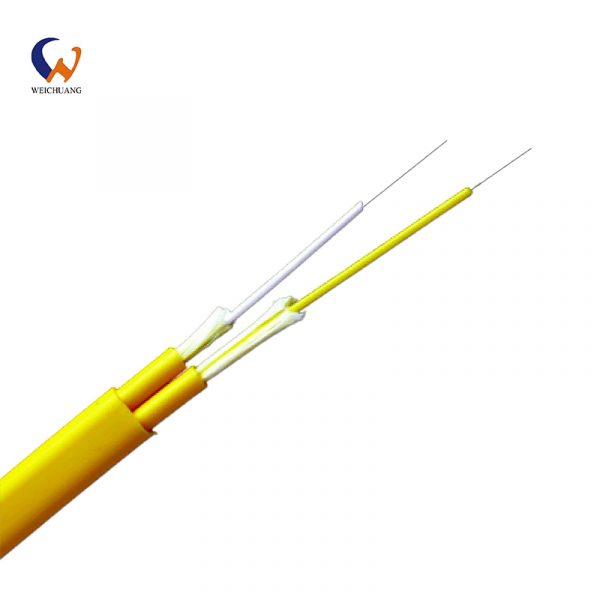

1. 2 subcable flame-retardant jacket.
2. Excellent Stripping performance of tight buffer fiber.
3. Suited to SM fiber and MM fiber (50 μm and 62.5μm).
Geometrical Characteristics
Cable Type | Φ30 | Φ24 | Φ2.0 | Φ1.8 |
Cable Dimension(mm) | 4.00±0.1 | 3.6±0.1 | 3.1±0.1 | 2.8±0.1 |
Cable Weight(kg/km) | 14 | 8 | 7.8 | 7.6 |
TBF Diameter(μm ) | 900±50 | 600±50 | ||
Mechanical Characteristics
Tensile Strength(N) | Long Term | 100 |
Short Term | 200 | |
Crush Resistance (N/100cm) | Long Term | 200 |
Short Term | 500 | |
Bending Radius(cm) | Dynamic | 20xH (H：Cable Axis) |
Static | 10xH (H：Cable Axis) |
Fiber
Fiber Type (core/cladding dimension) | 8.3/125. 50/125. 62.5/125 |
Transmission Characteristics
Item | SMF | 50/125 | 62.5/125 |
1310/1550(nm) | 850/1300(nm) | 850/1300(nm) | |
Attenuation(dB/km) | ≤0.40/0.30 | ≤3.5/1.5 | ≤3.5/1.5 |
Minimum Bandwidth(Mhz·km) | .............. | ≥400/400 | ≥160/500 |
Environmental Characteristics
Operating Storage Temperature | －20℃～＋60℃ |
Simplex cable,2-12 simplex cable are stranded around the metallic central strength member, arrange circuit according to clockwise order in turn, then used wrap winding, the APL is longitudinal covering, the cable is completed with outer sheath.
1. 900μm Or 600 μm tight buffer fiber.aramid yarn,soft flame-retardant jacket.
2. Excellent Stripping performance of tight buffer fiber.
3. Suited to SM fiber and MM fiber (50μm and 62.5μm).
1.High-integrated colored bare fiber design.
2.Cable diameter and bending radius small,It can installation freely in narrow room..
3.Outer jacket material: PVC, LSZH.
1.900μm tight buffer fiber aramid Yarn,flame-retardant jacket.
2.Excellent Stripping performance of tight buffer fiber.
3.Suited to SM fiber and MM fiber (50 μm and 62.5μm).
