1. Excellent stripping performance.
2. Suited to SM fiber and MM fiber (50μm and 62.5μm).
3.It is ideal choice of active apparatus used pigtail.
4. Excellent temperature performance.
5. Buffer material: PVC,LSZH,HYTREL,NYLON,PVDF.

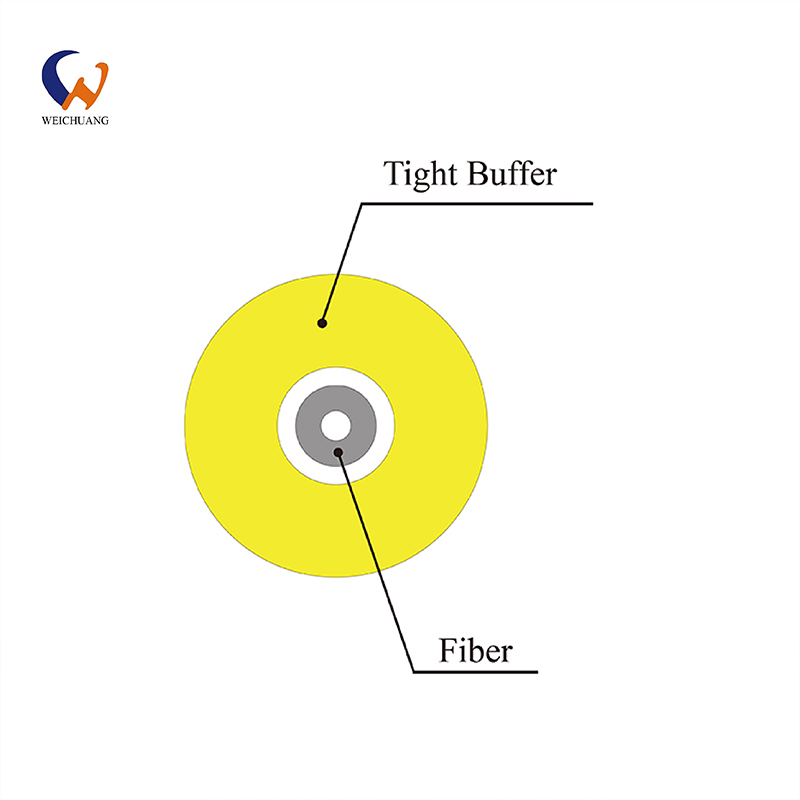

Geometrical Characteristics
TBF Diameter(μm ) | 900±50 | 600±50 |
TBF Weight(kg/km) | 0.9 | 0.4 |
Fiber Cladding Diameter (μm) | 125±1 | 125±1 |
Mechanical Characteristics
Max load(N) | Long Term | 3 | 3 |
Short Term | 6 | 6 | |
Bending Radius(cm) | Dynamic | 20xD (D：TBF Diameter) | |
Static | 10xD (D：TBF Diameter) | ||
Fiber
Fiber Type(core/cladding dimension) | 8.3/125, 50/125, 62.5/125 |
Transmission Characteristics
Item | SMF | 50/125 | 62.5/125 |
1310/1550(nm) | 850/1300(nm) | 850/1300(nm) | |
Attenuation(dB/km) | ≤0.40/0.30 | ≤3.5/1.5 | ≤3.5/1.5 |
Minimum Bandwidth(Mhz·km) | ---------------------------- | ≥400/400 | ≥160/500 |
Environmental Characteristics
Operating Storage Temperature | -20℃~+60℃ |
1. 2 subcable flame-retardant jacket.
2. Excellent Stripping performance of tight buffer fiber.
3. Suited to SM fiber and MM fiber (50 μm and 62.5μm).
Element: tight buffer fiber,used 6,12 core distribution cable for the Subunit into a compact, then used wrap winding the cable is completed with outer jacket. The cable inclue 4,6,8,12 sub-cables, the every Sub-cables.the every sub-cable include 6,12 tight buffer fiber.
1.900μm Hytrel, PVDF, aramid yarn, soft flame-retardant jacket.
1.High-integrated colored bare fiber design.
2.Cable diameter and bending radius small,It can installation freely in narrow room..
3.Outer jacket material: PVC, LSZH.
