Element: Simplex cable are stranded around the non-metallic central strength member
Geometrical Characteristics
Cable Type | 2 |
Cable Dimension(mm) | 7.0 |
Cable Weight (kg/km) | 40 |
TBF Diameter(μm ) | 900± 50 |
Mechanical Characteristics
Tensile Strength(N) | Long Term | 200 |
| Short Term | 660 |
Crush Resistance (N/100cm) | Long Term | 300 |
| Short Term | 1000 |
Bending Radius(cm) | Dynamic | 20xD(D:Cable Diameter) |
| Static | 10xD(D:Cable Diameter) |
Transmission Characteristics
| SMF | 50/125 | 62.5/125 | |
| 1310/1550(cm) | 850/1300(nm) | 850/1300(nm) | |
| Attenuation(dB/km) | ≤0.40/0.30 | ≤3.5/1.5 | ≤3.5/1.5 |
| Minimum Bandwidth(Mhz.km) | ......... | ≥400/400 | ≥160/500 |
Fiber
| Fiber Type(core/cladding dimension) | 8.3/125,50/125,62.5/125 |
Environmental Characteristics
| Operating Storage Temperature | -20℃~+60℃ |
Simplex cable,2-12 simplex cable are stranded around the metallic central strength member, arrange circuit according to clockwise order in turn, then used wrap winding, the APL is longitudinal covering, the cable is completed with outer sheath.

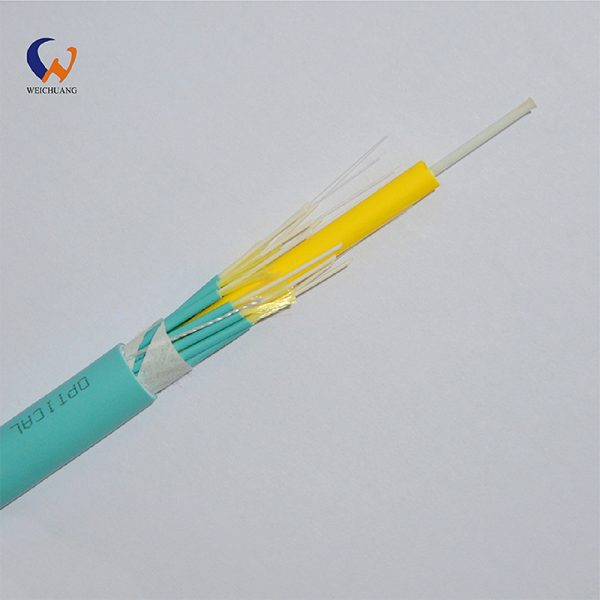

Element: tight buffer fiber,used 6,12 core distribution cable for the Subunit into a compact, then used wrap winding the cable is completed with outer jacket. The cable inclue 4,6,8,12 sub-cables, the every Sub-cables.the every sub-cable include 6,12 tight buffer fiber.
1.High-integrated colored bare fiber design.
2.Cable diameter and bending radius small,It can installation freely in narrow room..
3.Outer jacket material: PVC, LSZH.
1. Excellent stripping performance.
2. Suited to SM fiber and MM fiber (50μm and 62.5μm).
3.It is ideal choice of active apparatus used pigtail.
4. Excellent temperature performance.
5. Buffer material: PVC,LSZH,HYTREL,NYLON,PVDF.
